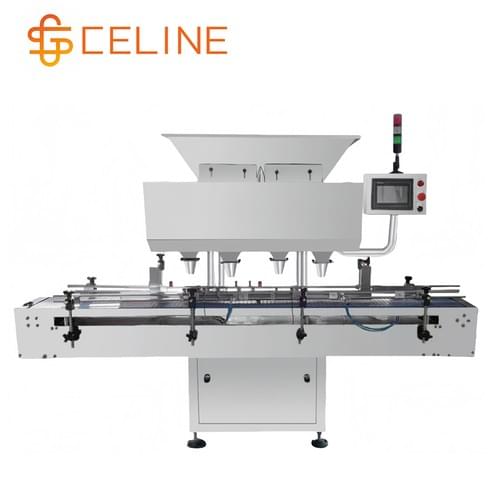

24 Channel Counting Filling Machine

24 Channel Tablet/Capsule Counting Filling Machine

Introduction

The bottle blocking device on the bottle delivery track of the bottle conveying mechanism blocks the bottles delivered by the upper equipment at the bottling position and waits for filling. The drugs enter the medicine warehouse in an orderly manner through the vibration of the feeding corrugated plate. The medicine warehouse is equipped with a counting photoelectric sensor. The drugs falling into the medicine warehouse are quantitatively counted by the photoelectric counting sensor and then loaded into the bottles at the bottling position.

Features

1. Strong compatibility, can count and bottle tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque), pills and other solid preparations or solid particles.
2. Vibration feeding: 16 channels of vibration feeding, unique flap filling mechanism feeding, feeding and discharging are uniform and stable, without damaging the medicine.
3. High dust resistance: Adopting our company's high dust resistance photoelectric sensing technology, it can work stably under high dust conditions.
4. Accurate counting: Photoelectric sensor counts automatically, and the bottling error is less than the national standard.
5. The special structure of the leak nozzle can prevent drug blockage, and the medicine bottle with a small bottle mouth can also be bottled quickly (optional)
6. High degree of intelligence, with multiple detection and alarm control functions such as no counting without bottles and fault self-checking.
7. Functional matching: The photoelectric sensor automatically detects the lack of bottles and automatically stops.
8. Simple operation: Adopting intelligent design, various operating parameters are set according to needs.
9. Convenient maintenance: Operators only need simple training to operate, and disassembly, cleaning and replacement of parts are simple and convenient without tools.
10. Sealed and dustproof: Equipped with dust removal box to reduce dust pollution (optional).
