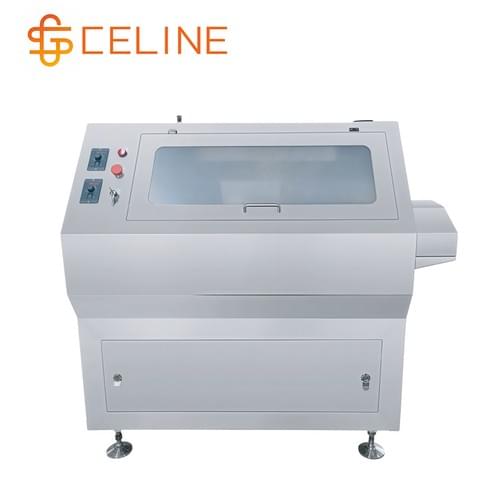

Bottle Unscrambler

Bottle Unscrambler

Introduction

The motor drives the bottle unscrambling disk to work through gear transmission. The bottles in the bottle bucket are rotated from the bottom of the bottle unscrambling disk to the top of the bottle unscrambling disk through the semicircular groove of the bottle unscrambling disk. The bottles in the semicircular groove are unscrambled by the bottle turning plate of the bottle unscrambling mechanism, and the bottles with the bottle mouth facing down and the bottle bottom facing up are automatically turned over to complete the bottle unscrambling.

Features

1. This machine is a mechatronic device with easy operation, simple maintenance and reliable operation.
2. It is equipped with bottle output quantitative control detection and overload protection device.
3. The frame and barrel are made of high-quality stainless steel, with beautiful appearance and in line with GMP requirements.
4. It does not require air source to blow the bottle, uses automatic bottle reverse mechanism, and is equipped with bottle collection device, which greatly improves production efficiency.
