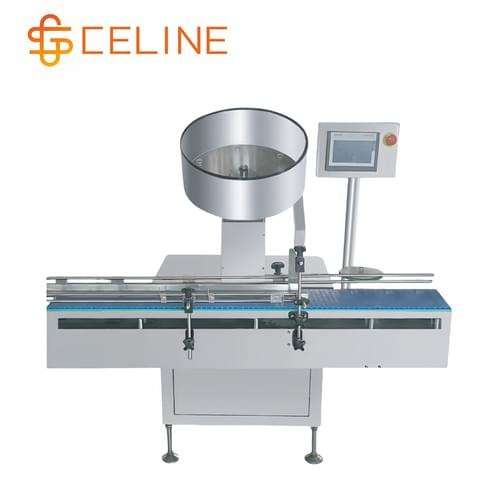

Columnar Desiccant Inserting Machine

Columnar​ Desiccant Inserting Machine

Introduction

It is used for automatic sorting, counting and placing columnar desiccants into bottles of various materials such as round, oblate, square, and oblate square bottles. The number of desiccants placed in each bottle can be set.

Features

• Automatic detection alarm function; automatic shutdown when there is no bottle, automatic detection alarm when there is no material
• Suitable for round, oblate, square, and oblate square bottles of various specifications and materials, disc-shaped bag desiccant with or without color label.
• Adopts human-machine interface control panel (touch screen), PLC control system, and same service motor.
• It has multiple detection alarm control functions such as no bottle, desiccant bag not put into the bottle, etc., to ensure continuity and accuracy.
• Fully automatic operation, intelligent joint control with the upper and lower processes, good coordination, no need for special operation, saving labor.
• Sophisticated structure, no need to frequently replace accessories, small footprint, low cost of use, high cost performance, economical and practical.

• Suitable bottle: Round, oblate, square, oblate square bottle
• Desiccant bag type: Columnaar desiccant bag, the specific size is determined by the bottle size
• Working speed: 30-60bottles/min
• Power supply: 220V 50HZ 0.5KW
• Dimension: 1360*750*1780mm
• Weight: 180kg
