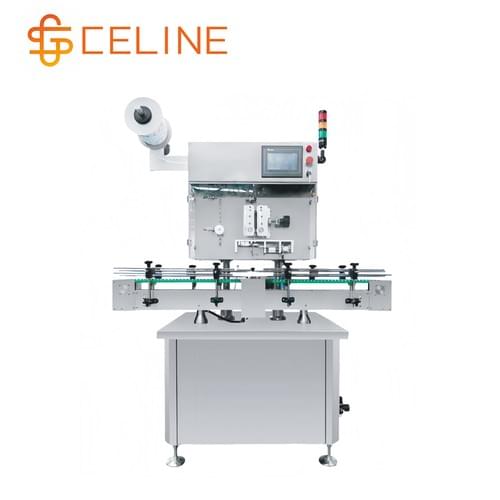

Desiccant Inserting Machine

Desiccant Inserting Machine

Introduction

The bottle-blocking cylinder on the bottle-feeding track of the bottle-feeding mechanism blocks the bottle delivered by the previous equipment at the position of loading the desiccant, waiting for the desiccant to be loaded, and the bottle mouth is aligned with the shearing mechanism. The stepper motor drives the bag-feeding mechanism to pull the desiccant bag out of the desiccant bag tray, the color code sensor detects the desiccant bag and controls the bag length, the scissors cut the desiccant bag and put it into the bottle, and the conveyor belt of the bottle-feeding mechanism transports the loaded desiccant bottle to the next equipment. At the same time, the bottle to be loaded with desiccant is added to the position of loading the desiccant bag.

Features

• Strong compatibility, suitable for round, oblate, square, and oblate square bottles of various specifications and materials.
• Colored and uncolored disc-shaped desiccant bags.
• Pre-placed desiccant belt design is adopted to avoid uneven bag transmission and ensure the accuracy of bag length control.
• The bag placement adopts the adaptive design of desiccant bag thickness to avoid bag breakage during transmission.
• Highly durable blade, accurate and reliable shearing, will not cut the desiccant bag.
• It has multiple detection and alarm control functions such as no bottle, no operation, fault self-checking, and desiccant bag not entering the bottle, to ensure the continuity of equipment operation and the accuracy of dryer bag insertion.
• The operation of the whole system can only be controlled in conjunction with the upper and lower processes, with good coordination, no need for special operation, and labor saving.
• The photoelectric sensor element is produced in Taiwan, stable and durable.

• Suitable bottle: Round, oblate, square, oblate square bottle
• Bottle size: Diameter 20-100mm, height 40-180mm
• Desiccant bag type: Disc desiccant bag, the specific size is determined by the bottle size
• Working speed: 10-120bottles/min
• Power supply: 220V 50HZ 0.5KW
• Dimension: 1700*900*2100mm
• Weight: 310kg
