Dyadic Type Turbing Pulverizer | High-Efficiency Industrial Pulverizing Machine

Product Introduction

The dyadic type turbining pulverizer is a high-performance industrial pulverizing equipment with a dual-chamber design, dedicated to efficient and fine grinding of various dry materials. Adopting advanced turbining pulverizing technology, this industrial turbining pulverizer achieves finer particle size and higher output than traditional grinders, meeting the high-standard processing demands of multiple industries.

Made of high-quality 304/316L food-grade stainless steel, this GMP dyadic pulverizer fully complies with GMP, FDA and CE industrial standards. It features a smooth, seamless interior with no dead corners, making cleaning and disinfection convenient and thorough, and effectively avoiding material contamination and cross-contamination. The sturdy, enclosed structure ensures stable running, low noise and long service life, suitable for heavy-duty and long-hour production.

This versatile dyadic type turbining pulverizer has a wide application scope, serving pharmaceutical, healthcare, food, chemical, grain and other industries. It is perfect for grinding herbal materials, spices, grains, food additives, chemical raw materials and other dry, non-viscous substances, supporting adjustable fineness to match diverse production requirements.

With a user-friendly design and reliable control system, this food grade dyadic pulverizer is simple to operate and maintain. Its compact layout saves workshop space, and the stable performance reduces downtime and maintenance costs, making it suitable for small-batch trial production and large-scale industrial manufacturing alike.

Working Principle of Dyadic Type Turbing Pulverizer

The dyadic type turbining pulverizer operates on the principle of dual-chamber high-speed turbining impact and grinding, combining two stages of pulverizing to achieve finer and more uniform powder particles.

Materials are fed into the first pulverizing chamber through the feeding port. Driven by a powerful motor, the internal turbine blades rotate at a high speed, hitting and crushing raw materials into coarse particles initially. The pre-processed materials then enter the second grinding chamber automatically, where the high-speed turbine components conduct further fine grinding and refinement, breaking particles into the required fineness.

An internal screening system controls the final particle size — qualified fine powder passes through the screen and is discharged smoothly, while oversized materials stay inside for secondary grinding. The whole process runs in a sealed cavity, preventing dust leakage and keeping the workspace clean. The rotation speed and screen specifications can be adjusted flexibly, realizing different pulverizing fineness and output levels to fit various material properties.

Core Advantages of Dyadic Type Turbing Pulverizer

1. Dual-Chamber Design & Superior Pulverizing Effect

This dyadic type turbining pulverizer adopts a unique dual-chamber structure, completing two stages of grinding in one operation. It produces finer, more uniform powder with higher fineness, solving the problem of insufficient grinding in traditional single-chamber grinders, and improving product quality significantly.

2. GMP Compliant & Hygienic Food-Grade Build

All parts touching raw materials of this GMP dyadic pulverizer are crafted from corrosion-resistant 304/316L stainless steel, with polished surfaces and no dead corners. The fully enclosed structure prevents external dust pollution and cross-contamination, meeting strict pharmaceutical and food safety standards, and simplifying daily cleaning work.

3. High Efficiency & Large Output Capacity

Equipped with high-performance turbines and a powerful motor, this industrial turbining pulverizer runs efficiently with fast grinding speed, boosting output by a large margin compared with ordinary pulverizers. It shortens processing time and improves overall production efficiency, perfect for large-batch continuous production.

4. Stable Running & Low Noise & Vibration

The machine features a robust frame and shockproof design, ensuring stable operation with minimal vibration and low running noise. It creates a quiet and comfortable working environment, and the wear-resistant turbine blades and durable components guarantee long-term stable use with a low failure rate.

5. Wide Applicability & Adjustable Fineness

This high efficiency pulverizing machine adapts to various dry materials and supports flexible fineness adjustment by changing screens or regulating rotation speed. It meets diverse processing needs across multiple industries, with quick specification switching and no complicated debugging required.

6. Easy Operation & Simple Maintenance

With a clear control panel and intuitive operation logic, the machine is easy to start, stop and adjust parameters. The pulverizing chambers, screens and turbine parts are easy to disassemble, clean and replace, and routine maintenance requires no professional skills, reducing labor and maintenance costs.

7. Energy Saving & Outstanding Cost-Effectiveness

This dyadic type turbining pulverizer has an optimized power configuration, lowering energy consumption during operation. With low material loss, long service life and minimal wearing parts, it brings stable long-term economic returns, making it a cost-effective choice for industrial pulverizing production lines.

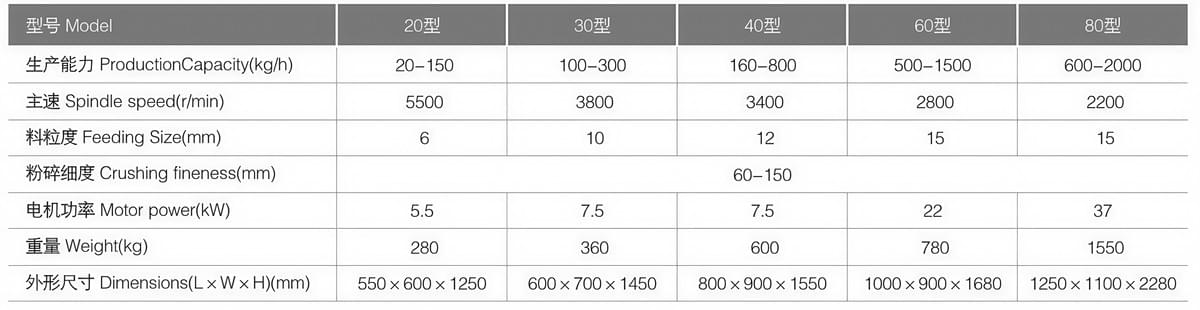

Technical Parameter
