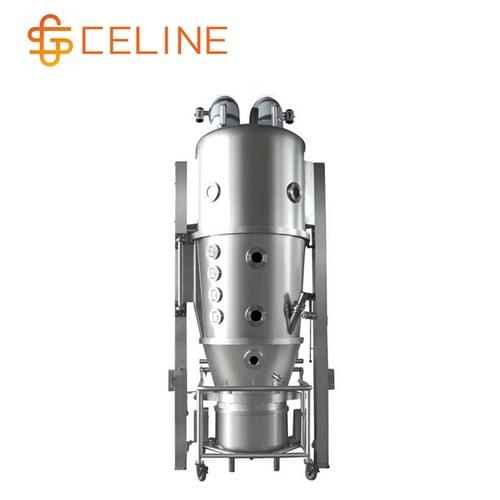

Fluid Bed Granulator

Fluid Bed Granulator / One Step Granulating Machine

Application

This granulating machine is one of the process equipment commonly used in the production of solid preparations in the pharmaceutical industry. It has various functions such as mixing, granulating and drying. It is also widely used in such industries as medicine, chemical industry and food.

Working Principle

The machine is composed of main machine, air handling system, heating system, slurry handling system and control system. When it works, the materials are fed into the silo of the fluid bed granulator, and after the programs and parameters are set according to the process requirements, the machine starts to work. After filtered by the air handling system and heated by the heating system, the air enters the main machine. After going through the slurry handling system, the slurry is send to the spray gun and sprayed to the materials inside the cavity, and then is boned with powder to form granules. After the operation is completed according to the set programs and parameters, the silo is pushed out and connected with the lifting material transferring machine for lifting discharging or the vacuum feeder is used to pump the materials a high position for granule sizing by the granule sizing machine, so as to effectively control dust polllution and cross contamination.

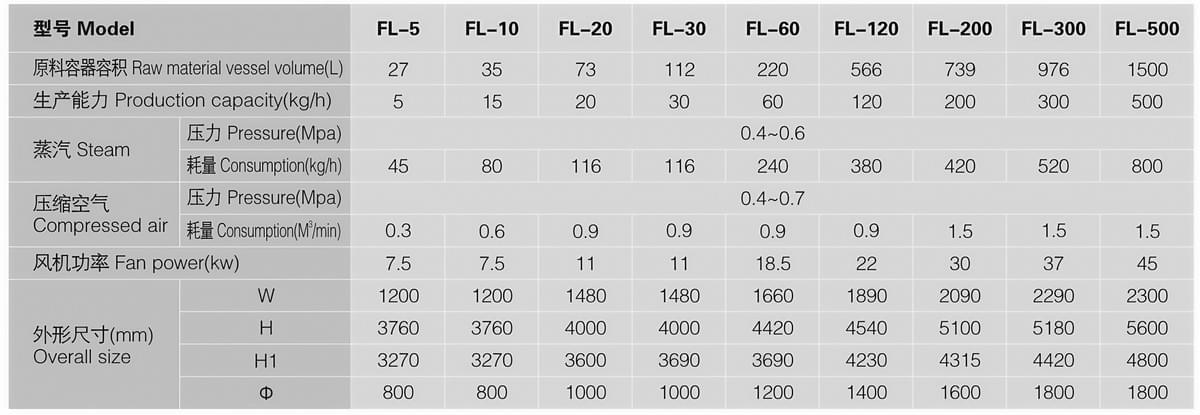

Technical Parameter
