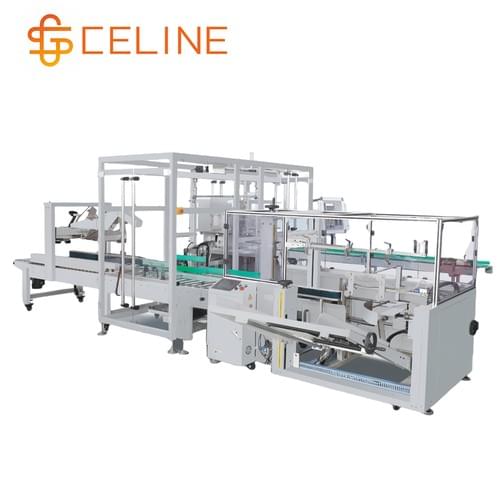

Grab Type Automatic Case Packing Machine

Grab Type Automatic Case Packing Machine

Introduction

The grabbing type fully automatic packing line helps enterprises to reduce costs and increase efficiency, improve packaging quality, and adapt to personalized production needs through intelligent and flexible design. It is one of the key equipment for modern intelligent manufacturing and Industry 4.0.

• Food and Beverage: High-speed packing of bottled water, canned food, snacks, etc., in compliance with hygiene standards.
• Daily Chemicals: Precise grabbing and stacking of shampoo bottles and cosmetic boxes.
• Medicine: Sterilization and high-precision packing of medicine boxes and medical devices.
• Electronic Manufacturing: Anti-static packaging of precision parts such as mobile phones and circuit boards.
• Logistics e-commerce: Automatic sorting and packing of multiple categories of goods to improve storage efficiency.

Features

• The whole line automatically completes unpacking, packing and sealing, effectively reducing labor costs.
• Side-push packing, neatly stacking block objects stably and reliably.
• Convenient and accurate adjustment can be made when the stacking specifications and carton specifications change.
• It has digital and Chinese display and prompts such as independent debugging and production control of single machine, output counting on the operation screen interface, machine speed adjustment and equipment failure.
• It has safety protection functions such as carton quality and carton storage detection and monitoring, fault alarm, fault shutdown and emergency shutdown.
• The packing is smooth without damaging the appearance of the carton. The finished carton has a good and neat appearance and a qualified appearance.

• Suitable box range: Length: 200-600mm, Width: 150-500mm, Height: 100-350mm
• Working capacity: Max. 760 boxes/hour （80-500boxes/min, depend on box size and filling quantity）
• Box material: General specification corrugated box
• Use tape: OPP, kraft paper 38mm or 50mm wide
• Power supply: 220V 50HZ 1.4KW
• Air Supply: 350L/min 0.5-0.6Mpa (5-6kg/cm2)
• Dimension: L5200*W2300*H1900mm
• Weight: 1200kgs
