High-Efficiency Crusher

High Efficiency Crusher

Working Principle

The material enters the crushing chamber from the hopper through the spiral conveyor and is crushed by the high speed rotating blade shear. The material is transported into the cyclone separator by the method of negative pressure air transport. The bag dust collector and the discharge material meet the requirements of the product.

Main Features

The crusher consists of the main machine, the cyclone separator, the dust box and the induced draft fan, etc. The machine adopts the movable tooth plate and the fixed tooth ring screen ring material under impact shear, friction surface width. At the same time, when the movable tooth plate rotates at high speed, the strong air flow is generated, and the heat of the crushing chamber and the material flow out from the screen quickly. The control particle size can be decided by replacing the screen, and can be used to recover materials or two levels, no dust, the machine is designed according to GMP standards. The whole machine is made of stainless steel material. The main engine is cooled by water. Production process without dust flying. Turbine crusher has the advantages of small volume, low energy consumption, stable transmission, low noise, high sealing degree, good self-cooling functioni, convenient disassembly and maintenance replacement parts. Easy maintenance and replacement of parts.

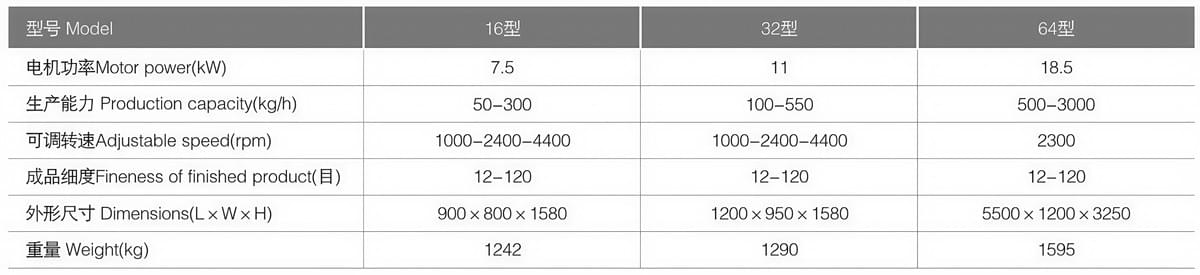

Technical Parameter
