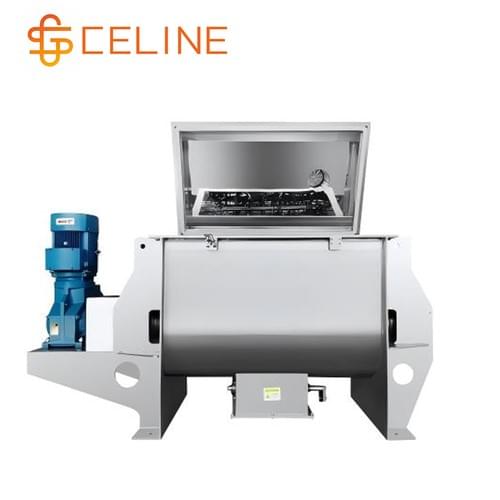

Horizontal Spiral Ribbon Mixer

Horizontal Spiral Ribbon Mixer

Application

Used in pesticides, veterinary drugs, food, chemical, biological, breeding industry, ceramics, refractory material, plastic, compound fertilizer, such as solid-solid (powder and powder) solid-plasma (i.e., powder and rubber slurry) mix, specifically adapted to viscous material mix.

Structure and Features

By the u-shaped containers, ribbon mixing blades and transmission parts. U typelong cylinder structure, ensure the mixed materials (powder, semi-liquid) in the cylinder body of the small resistance movement. Positive and nageative rotation ribbon is installed on the same horizontal axis, forming a low power efficient mixed environment, spiral strip blades made of double layer or three layer, the outer spiral material from two sides to the central pool, on both sides of the inner spiral material from the central to transport, can make the material more vortices in the flow. Accelerate the mixing speed, improve mixing uniformity.

Discharging Mode

Big open structure, using pneumatic materials has the advantages of fast discharging, no residual. Adopt high fineness of material or semi-liquid material using manual butterfly valve or pneumatic butterfly value. Configurable heating or cooling jacket. Heating mode has electric heating and heat conduction oil heating in two ways. Cooling process can be directly to infuse water jacket and clip hot swap area is large, the cooling speed. Small type mixer adopts reducer direct mode, simple structure, high operating reliability, maintenance is convenient. Large number mixer adopts pulley drive the cycloid speed reducer drive, belt transmission of elestic connection has the advantage of the overload protection when driving part.

Technical Parameter
