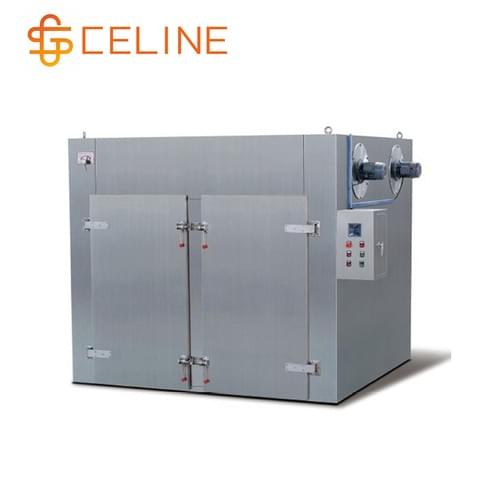

Hot Air Circulation Drying Oven

Hot Air Circulation Drying Oven

Introduction

This hot air circulation drying oven is a common product, the name for the CT series of hot air circulation drying oven, thermal efficiency is about 30% on average, after continuous improvement, and improvement for the third time, boldly adopted both at home and abroad has never been the low noise high temperature resistance, axial flow fan, with automatic temperature control system, the entire circulatory system closed, so that China has reached the advanced level at home and abroad hot air circulation drying oven, oven average thermal efficiency can be 70%.

Application

It is a general purpose drying machine with a wide application range. It is widely used for heating, curing, drying and dehydrating of materials and products in such industries as medicine, chemical industry, food, light industry, heavy industry, etc. For example, pharmaceutical materials, crude drugs, sliced herbal medicines, powders, granules, medicinal granules, small and large honey pill packaging bottles, pigments, dyes, dehydrated vegetables, dried fruits, sausage, plastic resins, electrical components, baking products, etc.

Features

• Most hot air circulates in the oven with high efficiency and energy saving.
• Forced ventilation is utilized. The oven is provided with the adjustable air distribution board to realize even material drying. The heat source can be steam, heat trasfer oil, hot water, electricity, infrared ray, etc.
• The machine is featured by low noise, balanced running, automatic temperature control and convenient installation and maintenance.
• With a wide application range, it is a general purpose drying machine for drying various materials.

Technology Introduce

• The heating source includes steam, electricity, infrared ray, and dual use of steam and electricity.
• Working temperature: stem heating 50-140℃, maximum 150℃.
• Working temperature is 50-500℃ if electricity or infrared ray is adopted.
• Automatic control system and computer control system are available for selection by users.
• Common steam pressure is 0.02-0.8Mpa (0.2-8kg/cm2).
• For electric heating, 15kw if calculated according to I type, actual 5-8kw/h.
• Please indicate any special requirements when placing orders.
• The price of nonstandard oven is negotiable.
• Please indicate if the working temperature is more than 140℃ or less than 60℃ when placing orders.
• The drying carts and drying discs have uniform dimensions at delivery and are interchangable.
• Drying disc dimensions: 460*640*45mm.
