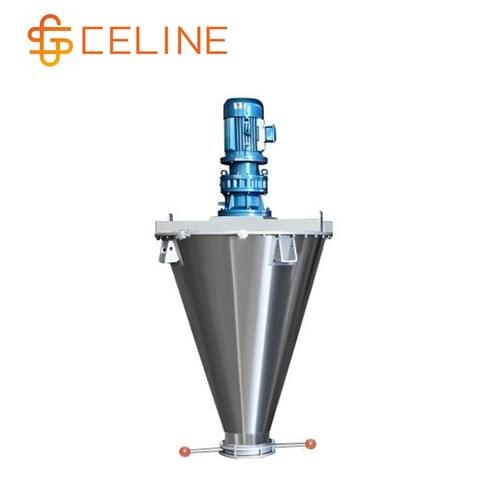

Single Spiral Cone Mixer

Single Spiral Cone Mixer

Application

Widely used in chemical industry, ceramic powder, pesticides, dyes, food, pigment, glaze, feed, building materials, rare earth and other powder mixed with powder (solid-solid). Such chemical machinery for wide adaptability, mixed materials for heat-sensitive materials will not cause overheating, don't pressure feedback and grinding particle materials, the mixture will not produce specific gravity and granularity, are different points crumbs segregation phenomenon.

Working Principle

The machine through the single-stage cycloidal reducer connecting screw with single screw with a blade, from the same speed, work, center of the piral cylinder material from bottom to top, and ribbon would powder from down to up along the spiral cylinder arm, between material produce shear mixing convection diffusion, because the screw tape blade so can makde illiquid or materials with a certain viscosity, non-stick arm has a good adaptability.

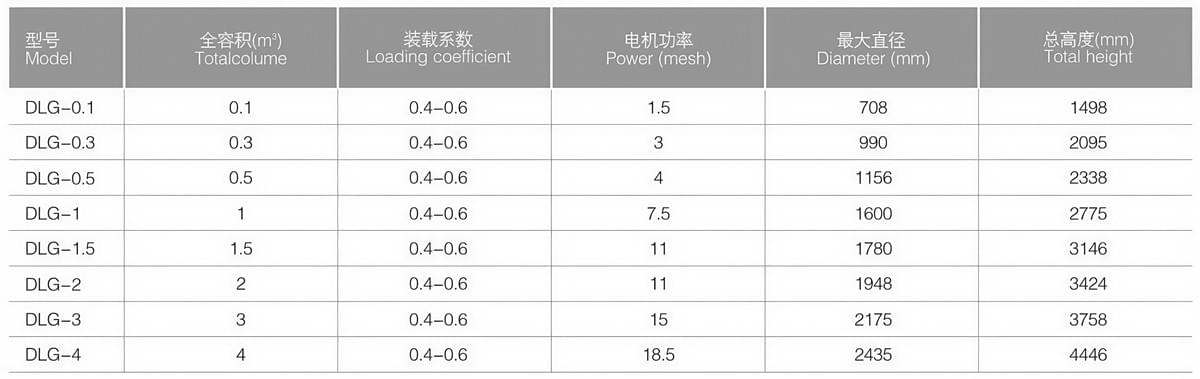

Technical Parameter
