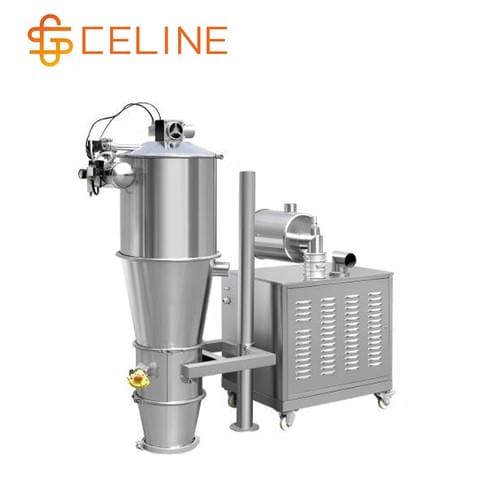

Vacuum Feeder

Vacuum Feeder

Application

It is mainly used for conveying powder and granular materials in applications with high height and long distance. The vacuum feeder is a preferred machine for automatic feeding for tablet press, capsule filler, dry type granulator, packaging machine, crusher and vibrating screen. It is widely used in such industries as medicine, chemical industry, food, etc.

Working Principle

The vacuum feeder is also called vacuum conveyor, which is a kind of dust-free closed pipe conveying equipment that conveys granular and powder materials through vacuum suction. It uses the air pressure difference between the vacuum and atmosphere to form air flow inside the pipe and drive the materials to move so as to complete the conveying of materials.

Features

• The vacuum feeder adopts a quick installed structure. The parts that contact materials are made of high quality austenitic stainless steel.
• It is provided with material level sensor with good sensitivity and stable quality.
• It adopts unique high pressure vortes air pump, which is featured by small volume, low noise and long service life.
• The automatic pulse back blowing system and automatic cleaning filter ensure that the equipment can run continuously without blocking.
• Through automatic control, the repetitive work process such as feeding, discharging and back flowing are completed automatically.

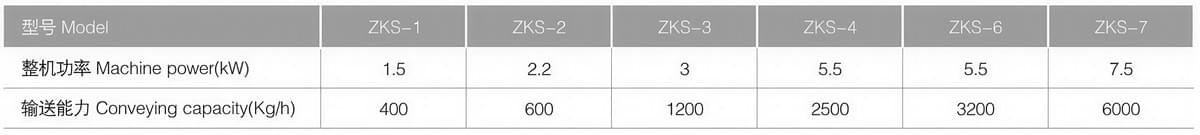

Technical Parameter
