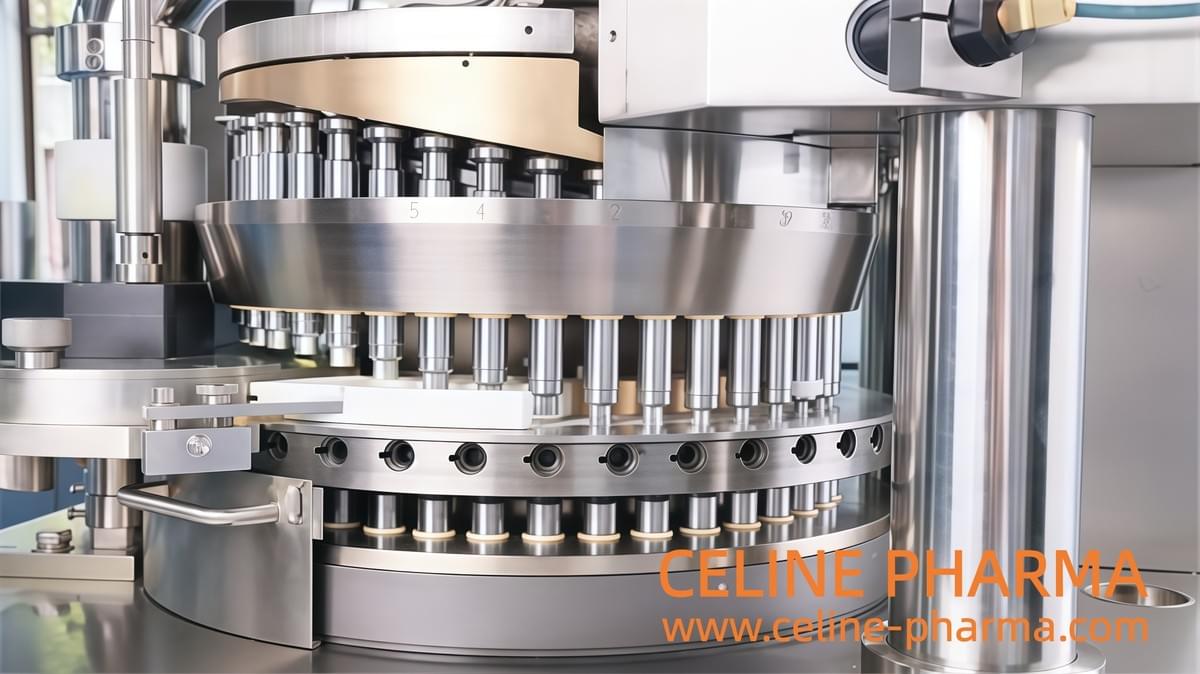

Factors Affecting the Normal Operation and Service Life of Tablet Presses (especially rotary tablet presses) are influenced by a combination of aspects, which can be summarized as follows:
I. Key Factors Affecting Normal Operation (Production Efficiency and Quality)
1. Material Factors
- Powder Characteristics: The flowability, compressibility, particle size distribution, moisture content, and content uniformity of the material are critical. Poor flowability leads to uneven filling and weight variation; poor compressibility requires higher pressure, sticking, capping, or excessive wear.
- Lubricity: Insufficient or uneven distribution of internal lubricants (e.g., magnesium stearate) in the material causes difficult ejection, sticking, and increases operational resistance.
- Corrosiveness: Some APIs or excipients may be corrosive, damaging the surfaces of tooling and contact parts.
2. Tooling (Punches and Dies) Quality and Condition
- Material and Hardness: High-quality alloy steel (e.g., D2, D3, S-series) and appropriate heat treatment hardness are fundamental. Excessive hardness makes them brittle and prone to cracking; insufficient hardness leads to wear and deformation.
- Machining Precision: The fit clearance between the punch and the die bore is crucial. Excessive clearance causes powder leakage and unstable tablet weight; insufficient clearance leads to punch seizure, heating, and binding.
- Wear and Damage: Concave or burred punch tips, enlarged die bores, scoring on the inner die wall directly cause weight variation, capping, sticking, and ejection difficulties.
- Cleanliness: Residual material, especially sticky material, on the tooling surface or inside the die bore severely affects the next compression cycle.
3. Equipment Operation and Parameter Settings
- Improper Parameter Matching: Pressure, fill depth, compression roll position, turret speed, etc., not optimized for material properties. Excessive pressure or insufficient pre-compression can cause capping and machine overload.
- Installation and Alignment: Poor turret leveling, misaligned tooling, improperly adjusted compression rolls or guides lead to uneven force distribution, abnormal noise, and wear.
- Cleaning and Changeover: Incomplete cleaning between batches, cross-contamination of different materials, or loosely installed parts.
4. Environment and Auxiliary Systems
- Ambient Temperature and Humidity: High humidity can cause material moisture absorption and caking, leading to sticking and poor flow.
- Dedusting System: Insufficient suction airflow allows dust to enter guide rails, bearings, and other moving parts, accelerating wear and contamination.
- Lubrication System: Failure of automatic lubrication systems or inadequate manual lubrication causes dry friction in moving pairs.
II. Key Factors Affecting Service Life (Equipment Durability)
1. Design, Manufacturing, and Installation Quality
- Structural Rigidity: Sufficient rigidity of the main frame, turret, and compression roll support system is necessary to ensure precision stability during long-term operation.
- Core Component Material and Workmanship: The material, heat treatment, and machining precision of key moving parts like the main shaft, compression rolls, guide rails, and worm gear sets determine their wear resistance and fatigue strength.
- Initial Installation: Unstable foundation or incorrect leveling during installation causes long-term stress deformation and vibration.
2. Daily Maintenance and Care
- Lubrication Management: This is the **most critical factor affecting lifespan.** Strict adherence to using the correct lubricants/oils/greases at specified intervals for bearings, guides, gearboxes, etc., is essential. Insufficient lubrication is a primary cause of wear, while over-lubrication or contamination is also harmful.
- Preventive Maintenance (PM): Regularly check fasteners, seals, drive belts; monitor bearing temperature, vibration, and noise; periodically calibrate pressure sensors and weight control systems.
- Cleaning and Care: Thoroughly clean the equipment after each use to prevent material buildup (especially corrosive or sticky materials) from corroding the equipment or entering moving parts.
3. Reasonable Use and Loading
- Avoid Overload: Long-term operation at or near the maximum rated pressure significantly accelerates fatigue damage to compression rolls, the main shaft, and bearings.
- Avoid "Running Empty": High-speed operation without material causes direct impact between punches and dies, severely impacting both tooling and machine.
- Standardized Operation: Follow procedures for startup (low-speed start -> adjustment -> speed up), shutdown, and emergency handling to reduce shock loads.
4. Electrical and Control Systems
- Stability: Power supply voltage fluctuations or control system failures can cause motor abnormalities and erratic movements, leading to mechanical shock.
- Overload Protection: Rely on and ensure the sensitivity of electrical overload protection devices (e.g., safety clutches, torque limiters) to disconnect promptly during overload, protecting mechanical structures.
Summary and Recommendations
To ensure efficient, stable operation and extend the service life of tablet presses, systematic measures should be taken:
1. Personnel: Enhance training for operators and maintenance staff to master equipment principles, operating procedures, and maintenance requirements.
2. Machine:
- Select reliable equipment and tooling.
- Establish and strictly implement a **Preventive Maintenance system**, especially for lubrication and precision checks.
- Maintain maintenance records for each machine.
3. Material: Thoroughly study material properties. Ensure suitability for compression through pre-processing (granulation, drying, etc.) and formulation optimization.
4. Method: Develop and optimize Standard Operating Procedures (SOPs) and process parameters for each product.
5. Environment: Control temperature and humidity in the compression room. Ensure the effectiveness of the dedusting system.
Through comprehensive management across the above aspects, unplanned downtime can be minimized, tablet quality ensured, and equipment service life extended to its designed lifespan or even longer.
