The Working Principle of A Pharmaceutical 2D Mixer

Working Principle of a Pharmaceutical Two-Dimensional (2D) Mixer

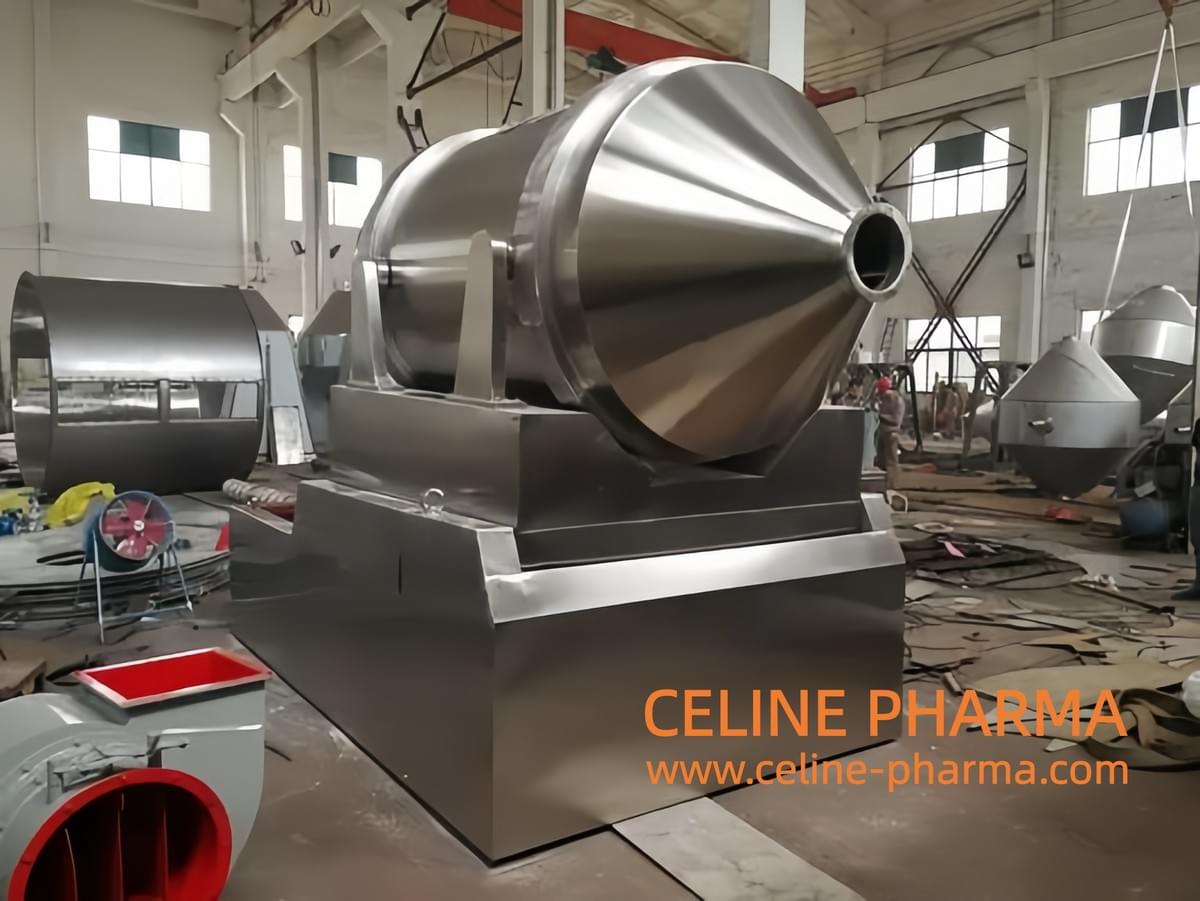

A Two-Dimensional (2D) mixer is a highly efficient and gentle mixing equipment widely used in the pharmaceutical industry, particularly in the production of solid dosage forms such as tablets, capsules, and granules. Its core principle can be summarized as follows: A single container performs two independent, planar motions simultaneously, creating complex vortices and diffusion to achieve a highly uniform blend of materials.

Below is a detailed breakdown of its working principle:

I. Core Structure

1. Mixing Container (Drum): Typically cylindrical or rhomboid in shape, made of stainless steel with a smooth, dead-space-free interior that complies with GMP requirements. It holds the materials.
2. Main Drive Shaft: The shaft that drives the **revolution** of the mixing container.
3. Secondary/ Rocking Shaft: The shaft that drives the **rotation** of the mixing container around its own axis.
4. Transmission System: Composed of motors, gear reducers, etc., providing power for the two motions.
5. Frame and Control System: Supports the entire structure and controls operating parameters such as time and speed.

II. The Two Core Motions (Origin of "Two-Dimensional")

"Two-Dimensional" refers to the mixing container moving in **two mutually perpendicular planes**, specifically:

1. Revolution:

• The entire mixing container revolves around the main axis of the equipment (the revolution axis) in a circular path.
• Function: Lifts and tumbles the material en masse, creating large-scale macro-flow. This is the primary driving force for bulk mixing.

2. Rotation:

• The mixing container simultaneously rotates around its own central axis (the rotation axis).
• Function: Generates shear, turning, and diffusion within the material, achieving local and intensive mixing inside the container.

Key Point: These two motions are driven by two independent transmission systems, and their **speeds can be adjusted and set separately**. The speed ratio between revolution and rotation is a critical parameter affecting mixing efficiency.

III. Mixing Process and Mechanism

When the machine starts, both motions act simultaneously, creating an intricate three-dimensional movement trajectory for the material inside the container:

1. Lifting and Tumbling: Driven by **revolution**, the material is carried upward by the container wall.
2. Weightlessness and Diffusion: As the material is lifted near the top, it falls along a parabolic trajectory due to gravity and inertia, entering a state of "weightlessness" or "partial weightlessness." Particles of different components interpenetrate and intertwine thoroughly in this state.
3. Shear and Convection: The **rotation** creates relative sliding and shear between material layers, along with strong convective motion. This effectively breaks up potential minor agglomerates or lumps.
4. Vortex and Compound Motion: The combination of revolution and rotation generates intense vortices and turbulent flow not only circumferentially but also radially and axially within the container. This multi-dimensional compound motion ensures rapid and **dead-space-free** exchange of material positions throughout the entire volume.

IV. Key Features (Why it is Suitable for the Pharmaceutical Industry)

1. High Mixing Homogeneity: The multi-dimensional motion ensures high mixing uniformity in a short time, typically with a Coefficient of Variation (CV) controllable within 2%.
2. Gentle Mixing: Primarily based on diffusion and convection with relatively mild shear force. It is especially suitable for **fragile, easily abraded materials or those with strict particle size requirements** (e.g., granules, coated pellets).
3. No Dead Space, Easy Cleaning: The container has a smooth inner wall with no internal agitators or blades. Material discharges completely without residue, facilitating easy cleaning and compliance with GMP requirements for preventing cross-contamination.
4. Excellent Sealing: The entire mixing container can be fully sealed, making it suitable for processing moisture-sensitive, oxidizable materials, or those requiring an inert atmosphere. It can also be used for vacuum drying or nitrogen-purged mixing.
5. High Loading Capacity: The typical loading volume can reach 60%-80% of the container's capacity, ensuring high production efficiency.
6. High Degree of Automation: Can be integrated with automatic loading, weighing, and discharge systems for fully automated production.

V. Comparison with 3D Mixers

This is a common point of comparison:

• 2D Mixer: The container performs **two regular, defined motions** (revolution + rotation). The movement trajectory is complex but regular.
• 3D Mixer: The container tumbles **randomly in multiple directions in 3D space** (e.g.,平移, rotation, inversion). The movement is more stochastic but also achieves excellent homogeneity and is dead-space-free. Both are suitable for high-end pharmaceutical mixing, with the choice depending on material characteristics and process preference.

Summary

The pharmaceutical 2D mixer achieves rapid, efficient, uniform, and gentle mixing by driving the mixing container to perform **precisely controlled revolution and rotation simultaneously**. This subjects the material to combined forces of gravity, centrifugal force, and inertia, generating multiple mixing actions including **lifting, tumbling, diffusion, convection, and shear**. Its design features of **no internal moving parts, easy cleaning, and full sealing** make it one of the core mixing equipment meeting the high standards of modern pharmaceutical manufacturing.
